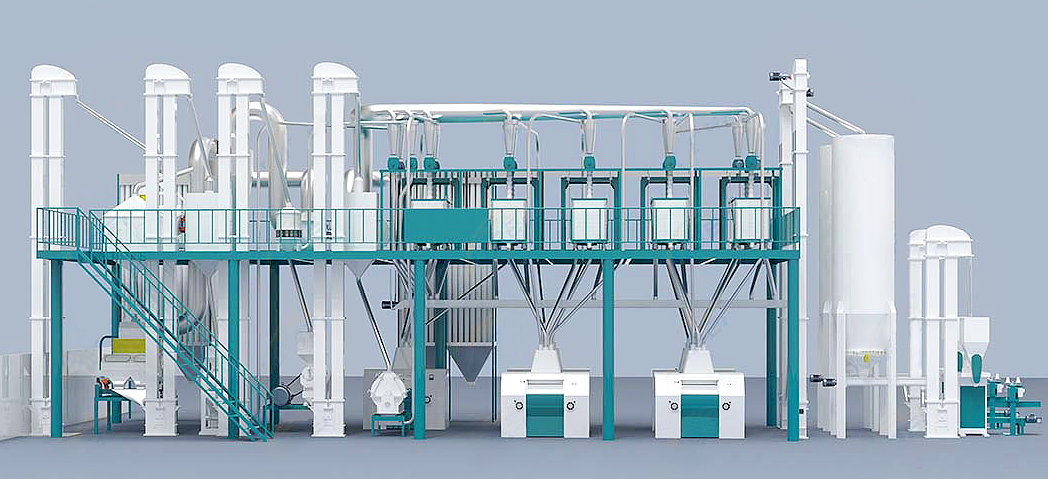

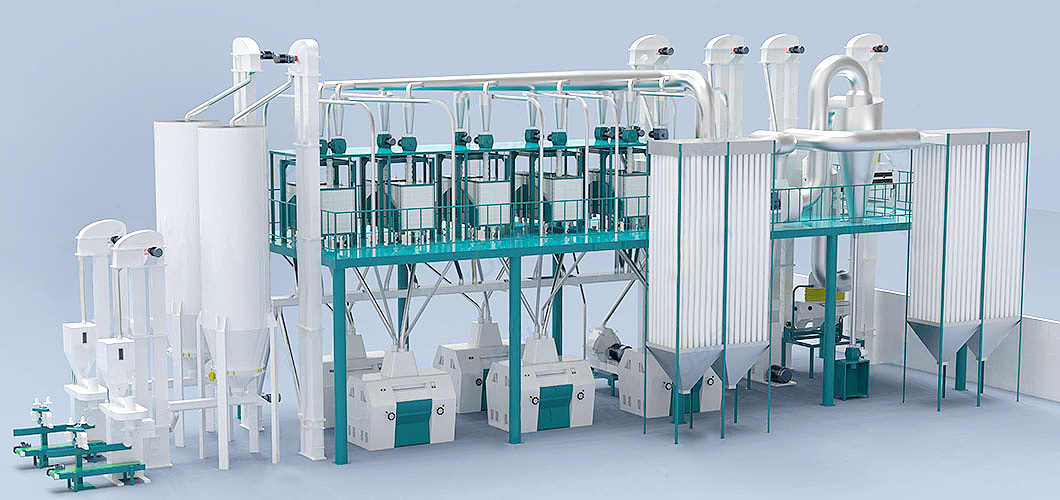

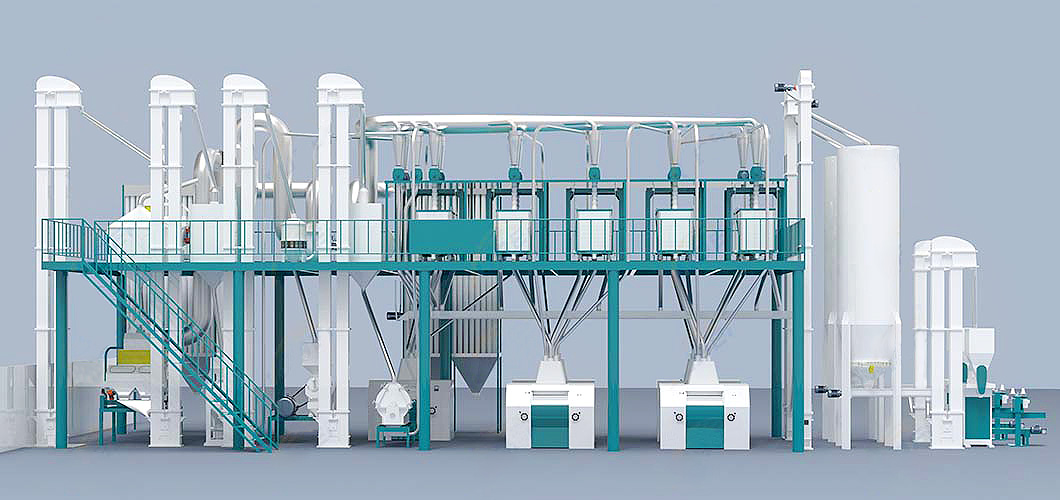

100TPD MAIZE MILL PLANT
Specializes in the production of large, medium, small and micro corn flour grinders, undertakes corn/maize flour mill turnkey projects from 10TPD to 300TPD, We also provide tailor-made corn flour mills according to the unique needs of our clients.
Capacity: 10tons to 300tons maize/24h
Finished product: Maize grits, Maize flour, Maize bran;
Description
The complete corn milling production line includes
Cleaning machine ---- emery roller peeling machine (drying method for corn/maize peeling) --- iron roller peeling machine --- Germ separator --- Hammer mill --- Roller mill --- Corn flour packing machine
1. Cleaning stage: Firstly, the magnetic separator removes the iron. Vibrating screen to filter the impurities and descaler. Remove stones and other impurities.
2. Peeling Stage: Use corn husk to grind the husk separately from the corn.
3. Grinding stage: Grind and mill the corn. Sieving using a double bin planfter.
4. Packaging Stage: Finally the final product will be packaged.
This design is a dry way of peeling the corn and saves water.
We can also wet and clean the corn/maize for wet peeling using dampeners on request.
The end product maize flour made by maize milling machine, usually the fineness of maize flour for African market is 60 mesh or finer than that. (We can change the screen to get the desired flour size)
10 tons per day, 20 tons per day, 30 tons per day, 50 tons per day, 100 tons per day, 200 tons per day, 300 tons per day, we can do it!
We are a manufacturer specializing in the research, development and production of Maize mill machine, Wheat flour mill machine, Rice/millet mill machine and complete sets as well as a variety of cleaning equipment and milling and screening equipment.
Flour Mill Plant
Flour Mill Plant
Flour Mill Plant
Technical Parameters
|
Capacity |
100TPD (24 hours) |
|
Power |
356.52kw |
|
Voltage |
220V/380V/440V (customizable) |
|
Flour Fineness |
40-60 Mesh |
|
Powder Yield |
80-95% |
|
Weight |
20000kg |
|
Installation |
25000*9000*8500mm(L*W*H) |
|
Package |
Three 40GP shipping containers |
Application Field
Roller mill is mainly used for grain milling, through the action of mechanical force of grinding rollers, change the shape and size of the material, grind the endosperm into fine powder of a certain size, and ensure that the effective ingredients of the grain (such as starch, protein, etc.) are not damaged, this machine has low energy consumption, flexible adjustment, convenient maintenance, and it is the necessary equipment for grain milling.
